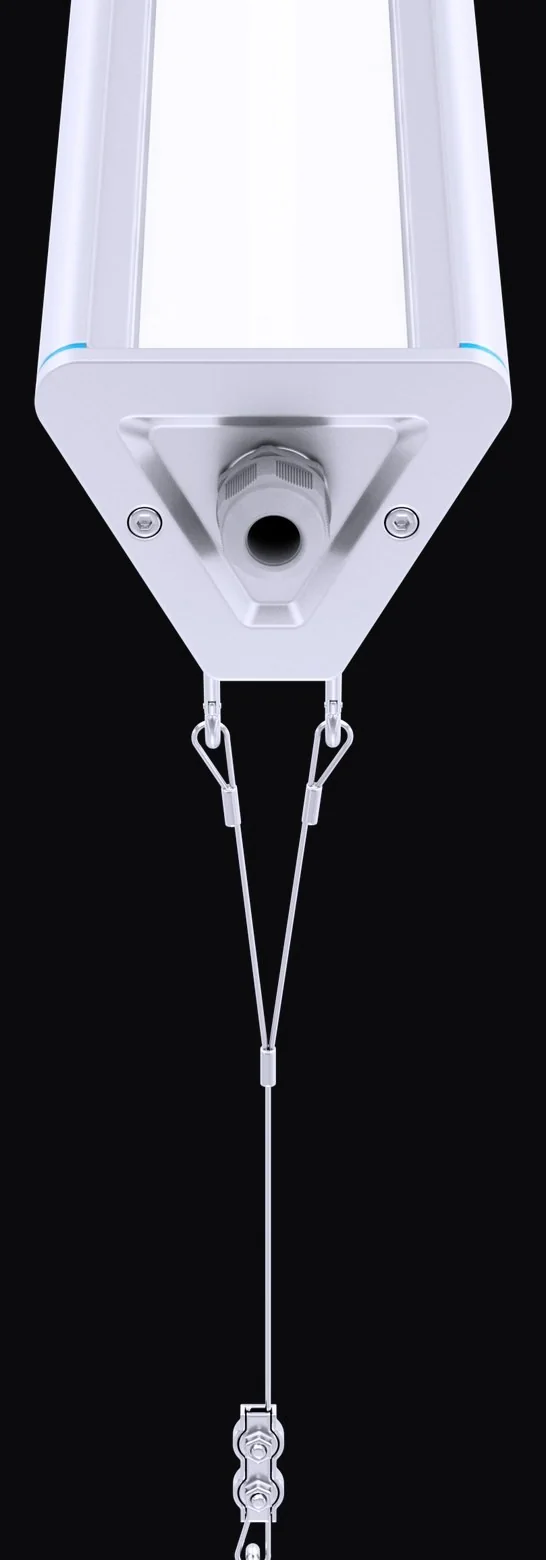

Mount · stocked
Carabiner
Y-cable with carabiner clips on the ridge. Suitable for hangars and open high bays.
Industrial lighting / High bay
Linear high bay
Apex
High output industrial lighting fixtures
Primary stocked
200 W · 5000K · 30×90° · carabiner · 0–10V · 4 kV + Littelfuse SPD · custom paint on request
Product

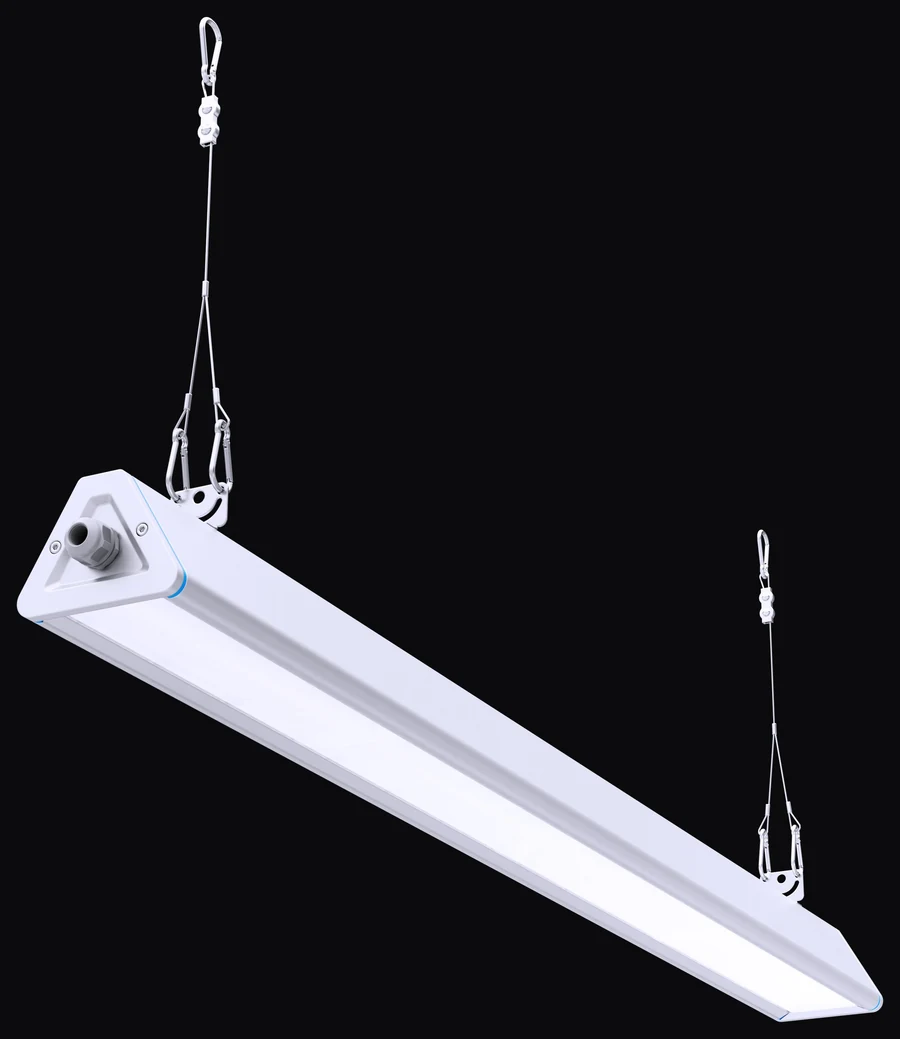

Triangular housing. Directed beam.
Apex is a linear high bay with a triangular AL 6063 housing. The stocked package is 200 W, 5000K, 30×90°, hung on carabiners, with 0–10V dimming and surge protection already fitted. We use it in hangars, body shops, and warehouses. Other powers, beams, and finishes are available if that is not what the space needs.
- Efficacy
- 160 lm/W
- at 200 W
- ~32,000 lm
- Protection
- IP66 / IK08
- L70B10 lifetime
- >102,000 h

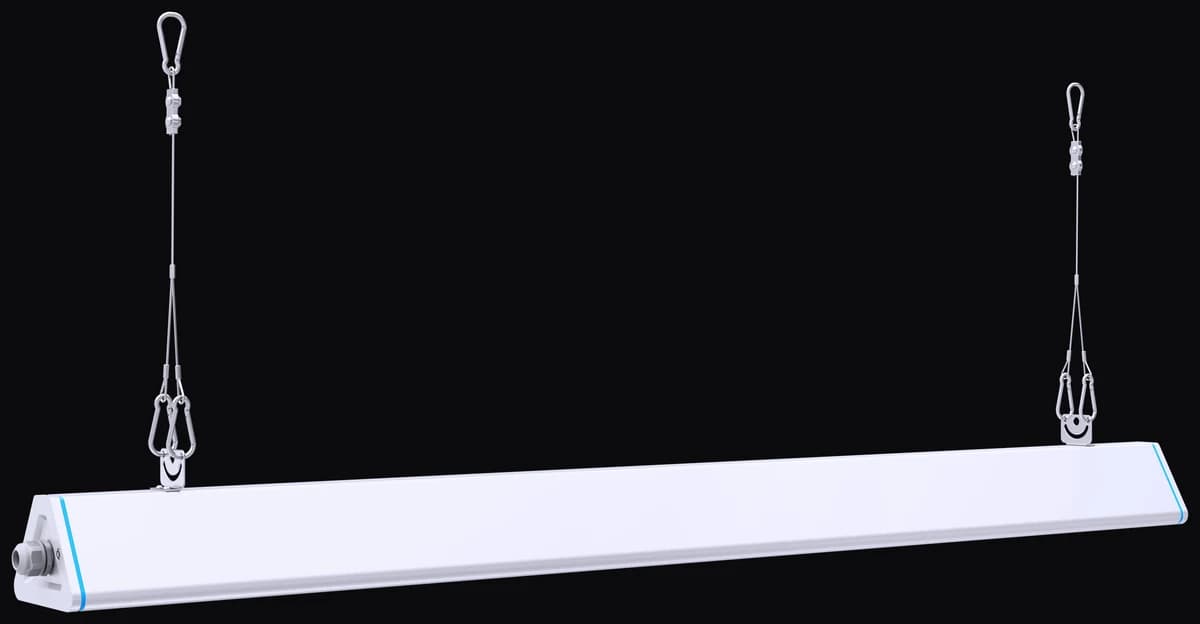

VMT Apex · triangular AL profile · carabiner mount
Optics & output
Output, beams, and lifetime

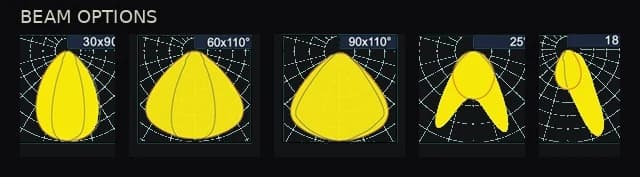

Rectangular beam options put light on the floor and working faces where it is needed.
Primary stock
30×90° beam · 5000K · ~32,000 lm at 200 W · CRI >80
Also available
60×110° · 90×110° · asymmetric 25° · P18 · other CCTs on request
Lifetime
L70B10 >102,000 h (TM-21 / LM-80 based)
Installation
Mounting, surge & dimming
Stocked for hangar and high-bay work — suspension ready, with surge and 0–10V control fitted.
Mount · options
Y-cable / brackets
Surface or structure brackets for closer ceiling or beam mounting when suspension is not preferred.
Protection
4 kV + Littelfuse SPD
Built-in 4 kV surge protection. We also fit a Littelfuse surge protector for additional protection on site.
Exact Littelfuse model available on request.
Control
0–10V dimming
Configured for 0–10V dimming. Lower light levels when a space is empty or lightly used to reduce energy use.
Supports occupancy-aware and BMS control where sensors are fitted.
In the field
Applications

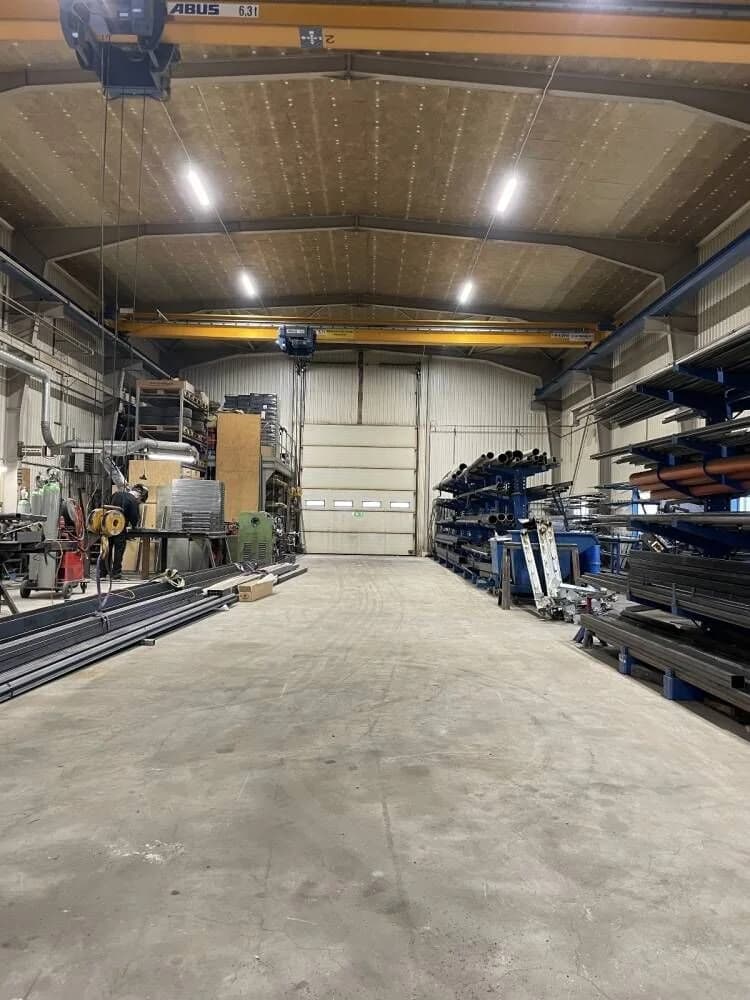

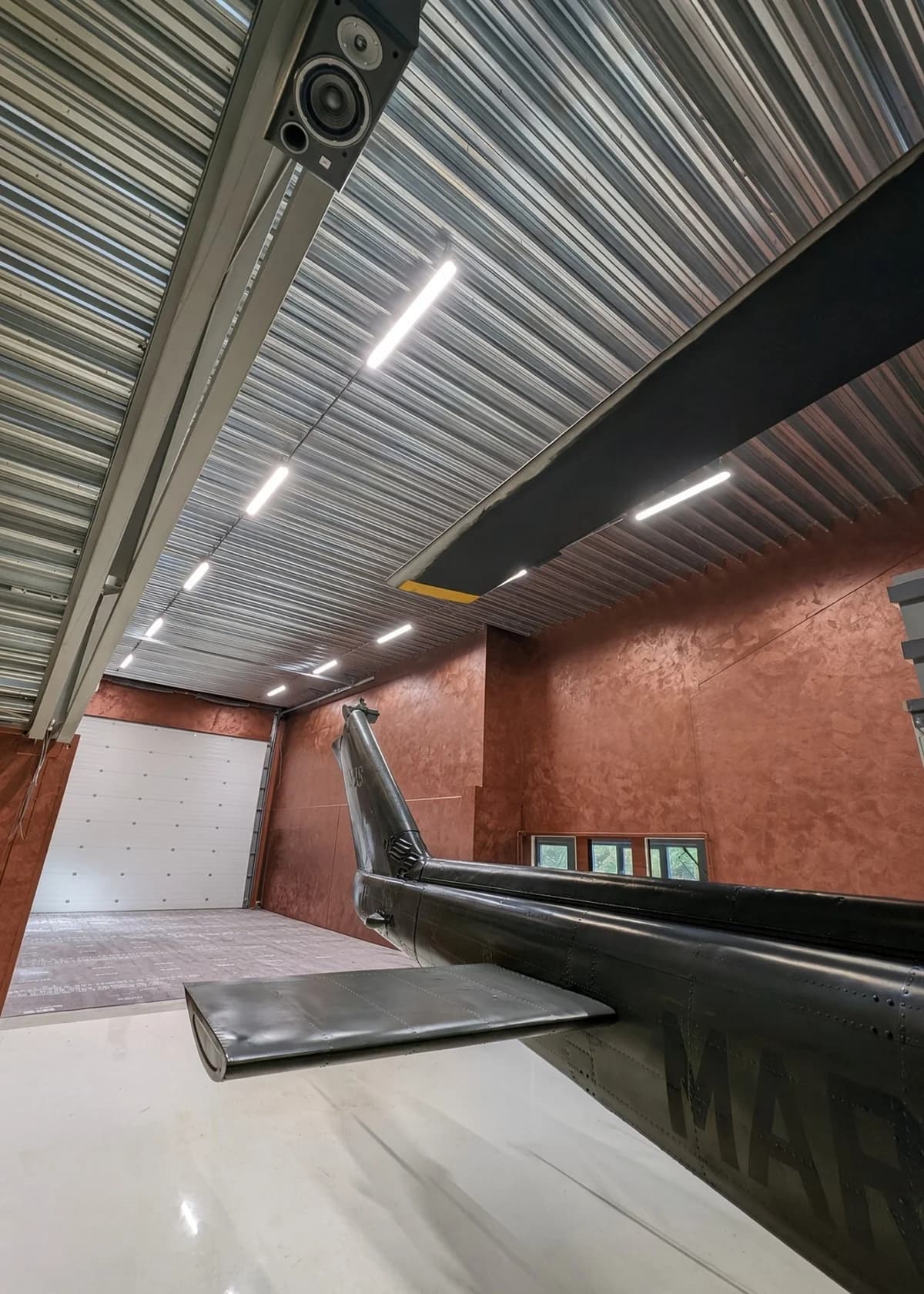

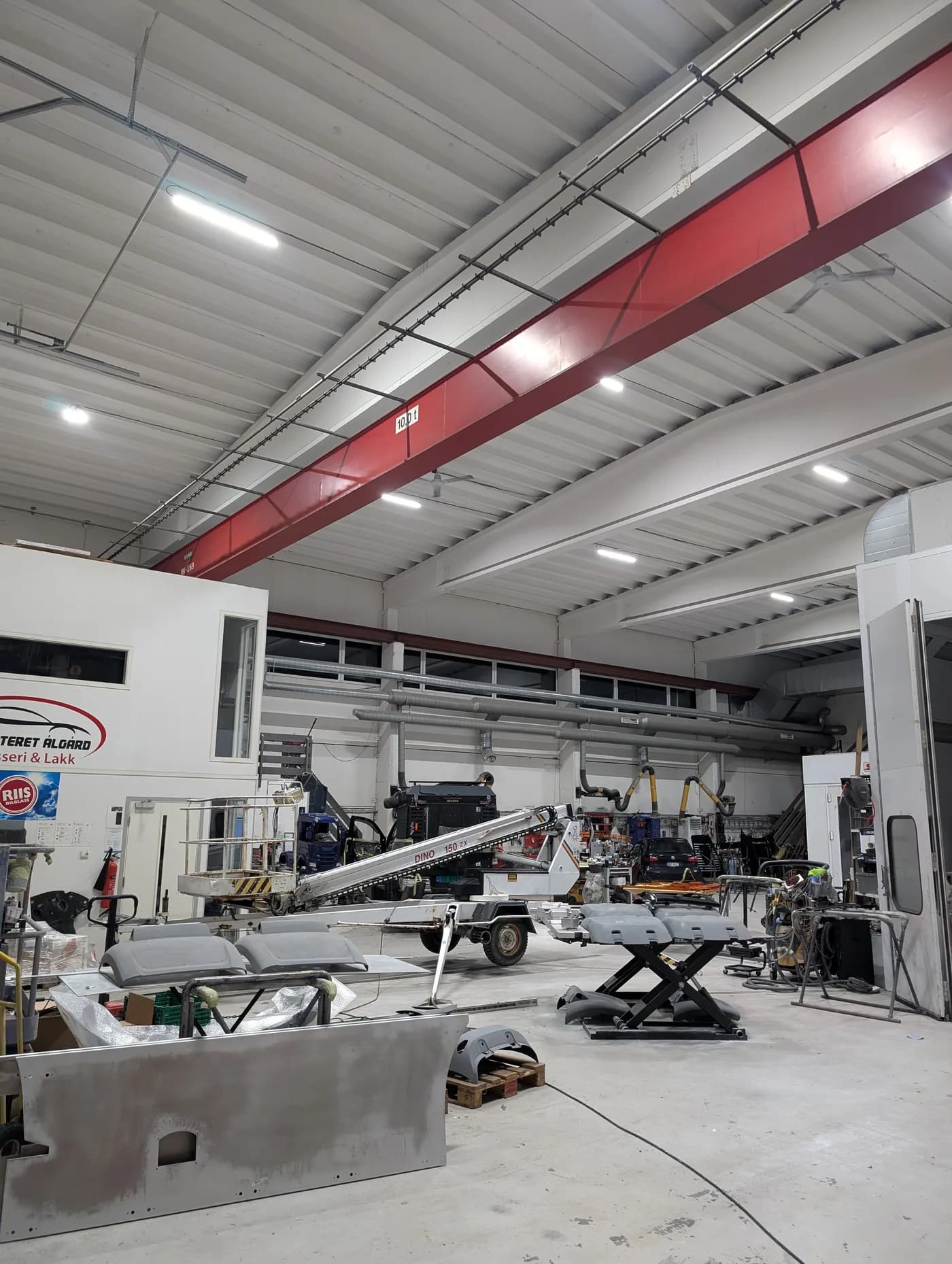

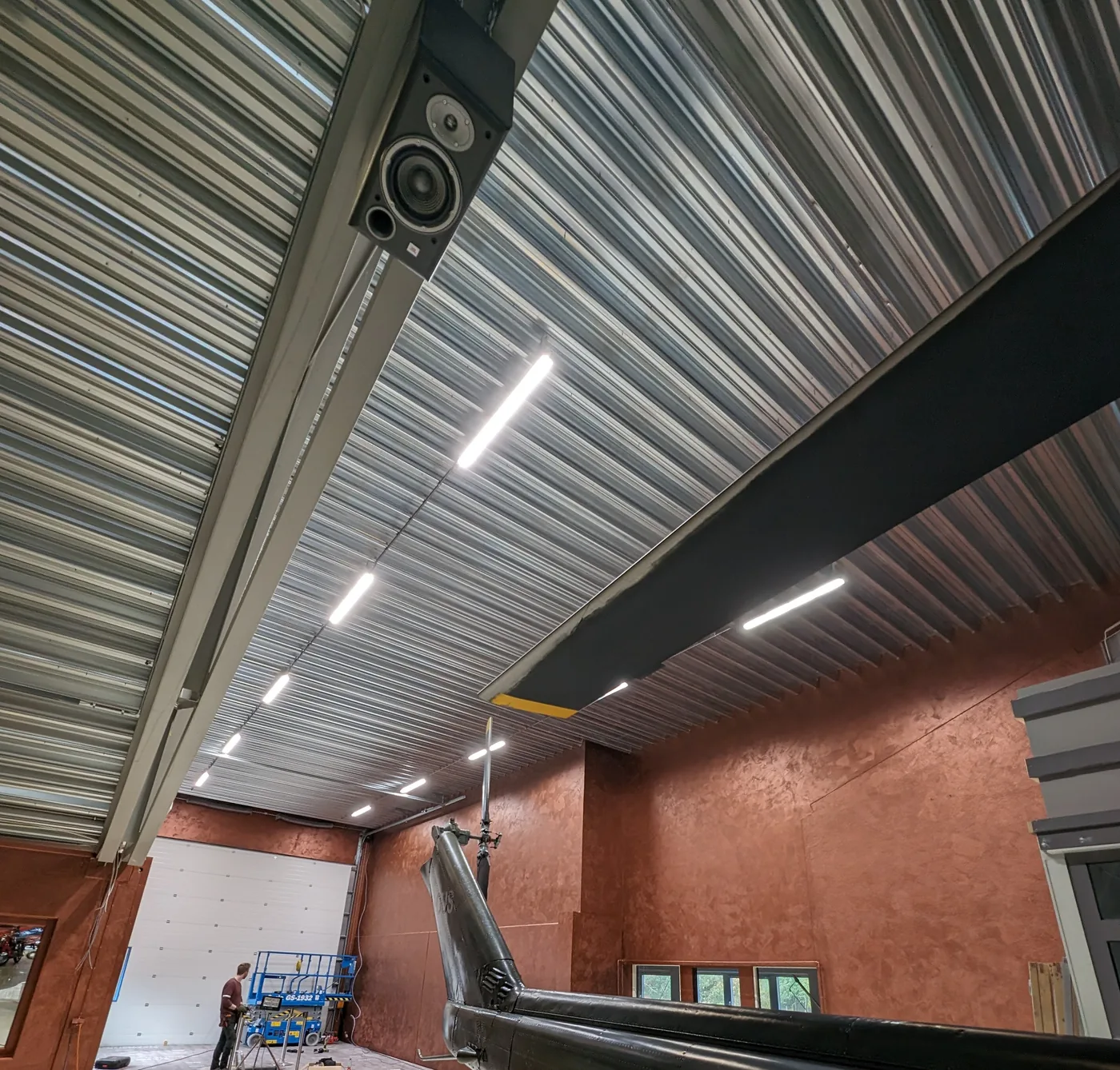

Hangars, body shops, and warehouses — directed light across long spans and working zones.
Technical overview
Specifications
Figures for the primary stocked package. Alternate powers, optics, and finishes available on request.
Primary stocked
200 W · 5000K · 30×90° · carabiner · 0–10V · 4 kV + Littelfuse SPD · custom paint on request
Optical
| Efficacy | 160 lm/W |
| Flux (200 W) | 32,000 lm |
| CRI / SDCM | >80 / ≤5 |
| CCT (stocked) | 5000K |
| Beam (stocked) | 30×90° |
| Beam options | 60×110° · 90×110° · asym 25° · P18 |
Electrical
| Power | 100 / 150 / 200 W |
| Input | 220–240 V · 50–60 Hz |
| PF / THD | >0.95 / <10% |
| Dimming | 0–10V (stocked) |
| Surge | 4 kV DM/CM |
| Enhanced SPD | Littelfuse (model on request) |
Mechanical
| Housing | AL 6063 triangular |
| Optic | PC |
| Finish | RAL9003 · custom on request |
| IP / IK | IP66 / IK08 |
| Mount (stocked) | Carabiner |
| Mount options | Y-cable · surface brackets |
Thermal · package
| Ambient Ta | −40 ~ +60°C |
| Lifetime | L70B10 >102,000 h |
| Size @ 200 W | 1192 × 106 × 79 mm |
| Weight @ 200 W | 3.90 kg net |
| 100 W | 592 mm · 16,000 lm |
| 150 W | 892 mm · 24,000 lm |
Also available — 100/150 W · alternate optics · Y-cable / brackets · other CCTs · custom paint. Marks: CE · UKCA · RoHS.

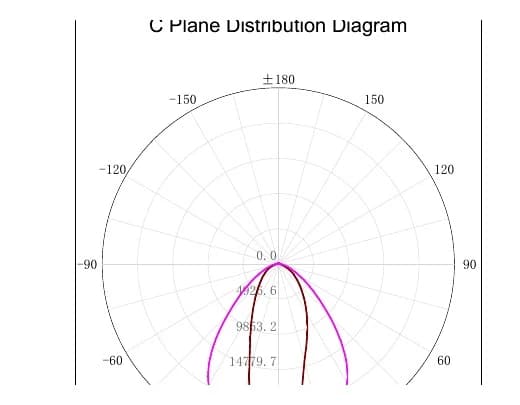

Photometrics · 200 W · 30×90°
Resources
Downloads
Datasheet and lookbook for project files and client review.
Inquiry
Ask about VMT Apex
Project pricing, optics, and custom paint — tell us about the space and we will come back with options.
If you already know the mounting height, beam, or control system, include that. If not, a description of the hall is enough to start.
